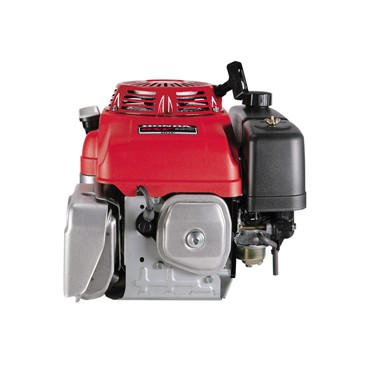

Honda GXV340

Description

Professionals rely on the GXV160 to deliver reliable, easy starting, fuel efficient performance, day in and day out.

• The Honda GXV340 is used throughout Australia to power commercial lawn and garden equipment, including Ride-on lawn mowers.
• The GXV340's precision camshaft design offers precise valve timing and optimal valve overlap for better fuel efficiency, and its Overhead Valve design supplies optimal power transfer.
• The GXV340 is exceptionally quiet for its size and output. This is in part due to its large capacity, multi-chamber exhaust system.
• Don't forget, all Honda GXV Engines are covered by a Honda 3 Year Domestic & Commercial Warranty.

COMMON APPLICATIONS
The Honda GXV340 is used throughout Australia to power commercial lawn and garden equipment, including Ride-on lawn mowers.

As well as this, the GXV340 is often used to power Construction/Industrial Equipment, as well as heavy-duty Agricultural equipment.

There's enough guts in the GXV340 to power equipment such as Mini Loaders, and it's also used in Floor Cleaning applications.

FUEL EFFICIENT, HIGH OUTPUT OPERATION
The GXV340's precision camshaft design offers precise valve timing and optimal valve overlap for better fuel efficiency, and its Overhead Valve design supplies optimal power transfer.

It also incorporates a high compression ratio for better fuel efficiency, which is handy for your pocket - and the environment.

Precision engineered components result in lower vibration, and the GXV340 features Dual balancer shafts and a Ball Bearing-supported crankshaftfor greater stability and smooth performance.

EXCEPTIONALLY QUIET
The GXV340 is exceptionally quiet for its size and output.

This is in part due to its large capacity, multi-chamber exhaust system.

Its design incorporates a forged steel crankshaft and rigid crankcase, helical cut gears, and a sophisticated air intake system.

And it emits less mechanical noise due to lightweight, noise-reducing materials.

3 YEAR WARRANTY
Don't forget, all Honda GXV Engines are covered by a Honda 3 Year Domestic & Commercial Warranty.

The GXV340's simple operation is renowned, but if you need assistance or spare parts, Honda's got you covered.

With over 400 authorised Honda dealers around Australia, you'll never be on your own with a Honda engine.

OTHER FEATURES
Oil Alert, Cast iron cylinder sleeve, Dual element air cleaner, Large fuel tank, Large automotive type fuel cap, Easily accessible spark plug, and anEasy, convenient, heavy duty control box come standard.

It's built with high quality materials, fit, and finish, and has an automatic mechanical de-compression system.

EMISSION COMPLIANT
Applicable models meet the strictest world standards, contact Honda for more info
No catalyst necessary

AVAILABLE OPTIONS
Electric startSpark arrester available

SPECIFICATIONS

MODEL - GXV340
TYPE - Air-cooled 4-stroke OHV
BORE & STROKE - 82 X 64 mm
DISPLACEMENT - 337 cm3
COMPRESSION RATIO - 7.7:1
NET POWER - 8.9 HP (6.6 kW) @ 3,600 rpm
CONTINUOUS RATEDPOWER - n/a
MAXIMUM NET TORQUE - 21.6 Nm @ 2,500 rpm
IGNITION SYSTEM - Transistorised magneto
STARTING SYSTEM - Recoil/electric
COOLING SYSTEM - n/a
PTO SHAFT ROTATION - Counter-clockwise (from P.T.O. side)
FUEL CONSUMPTION ATRATED POWER - n/a
RECOMMENDED FUEL - Unleaded
LUBRICATION SYSTEM - Pressure and splash
RECOMMENDED OIL - n/a
OIL CAPACITY - 1.1l
DIMENSIONS - 433 x 382 x 406 mm
DRY WEIGHT - 32.2kg
