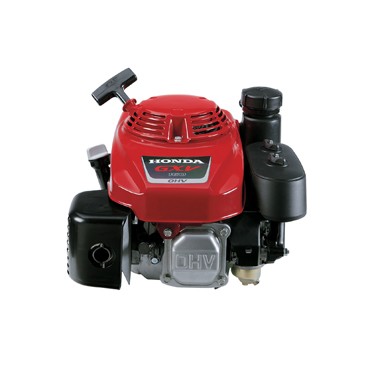

Honda GXV160

Description

Professionals rely on the GXV160 to deliver reliable, easy starting, fuel efficient performance, day in and day out.

• The GXV160 is the engine that powers Honda lawn mowers so you know it'll work in practically any commercial lawn & garden equipment.
• The GXV160's precision camshaft design offers precise valve timing and optimal valve overlap for better fuel efficiency, and its Overhead Valve design supplies optimal power transfer.
• Compared to its competitors, the GXV160 is exceptionally quiet. This is in part due to its large capacity, multi-chamber exhaust system.
• Of course, all Honda GXV Engines are covered by a Honda 3 Year Domestic & Commercial Warranty.

COMMON APPLICATIONS
The GXV160 is the engine that powers Honda lawn mowers so you know it'll work in practically any commercial lawn & garden equipment.

It's also designed to power Forestry equipment, Construction/Industrial and Agricultural equipment.

To make sure that the GXV160 will work for you, click the "Compare Products" icon in the top right of this page.

EFFICIENT ENGINEERING
The GXV160's precision camshaft design offers precise valve timing and optimal valve overlap for better fuel efficiency, and its Overhead Valve design supplies optimal power transfer.

It also incorporates a high compression ratio for better fuel efficiency, which is handy for your pocket - and the environment.

Precision engineered components result in lower vibration, and the GXV160 features a Ball Bearing-supported crankshaft for greater stability.

EXCEPTIONALLY QUIET
Compared to its competitors, the GXV160 is exceptionally quiet.

This is in part due to its large capacity, multi-chamber exhaust system.

Its design incorporates a forged steel crankshaft and rigid crankcase, helical cut gears, and a sophisticated air intake system.

And it emits less mechanical noise due to lightweight, noise-reducing materials.

3 YEAR WARRANTY
Of course, all Honda GXV Engines are covered by a Honda 3 Year Domestic & Commercial Warranty.

The GXV160's simple operation is renowned, but if you need assistance or spare parts, Honda's got you covered.

With over 400 authorised Honda dealers around Australia, you'll never be on your own with a Honda engine.

PROVEN RELIABILITY
Oil Alert
Cast iron cylinder sleeve
High quality materials, fit, and finish
Dual element air cleaner
Fuel Valve

EASY TO USE AND MAINTAIN
Large fuel tanks
Easily accessible spark plug
Easy Starting
Heavy duty recoil starter
Automatic mechanical de-compression system

EMISSIONS COMPLIANT
Applicable models meet the strictest world standards - no catalyst necessary.
Contact Honda for more info.

AVAILABLE OPTIONS
Spark arrester available

SPECIFICATIONS

MODEL - GXV160
TYPE - 4-stroke, overhead valve, single-cylinder, Vertical Shaft
BORE & STROKE - 68 x 45mm
DISPLACEMENT - 163 cm3
COMPRESSION RATIO - 8.0:1
NET POWER - 3.2 Kw (4.3HP) at 3600 rpm
CONTINUOUS RATED POWER - 2.0 kW (2.7HP) at 3000 rpm
MAXIMUM NET TORQUE - 9.6 Nm at 2,500 rpm
IGNITION SYSTEM - Transistorised magneto ignition
STARTING SYSTEM - Recoil Starter
COOLING SYSTEM - Forced-air
PTO SHAFT ROTATION - Counter-clockwise (from P.T.O. side)
FUEL CONSUMPTION ATRATED POWER - 1.1 L/h at 3,000 rpm
RECOMMENDED FUEL - Unleaded
LUBRICATION SYSTEM - Forced Splash
RECOMMENDED OIL - 10W/30 API SG
OIL CAPACITY - 0.65l
FUEL TANK CAPACITY - 1.8l
DIMENSIONS - 420 x 365 x 357mm
DRY WEIGHT - 14.3kg
PRICE RANGE - $582 - $649
