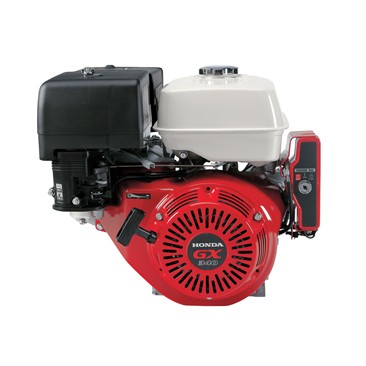

Honda GX340

Description

The GX340 features more power, quieter performance, lower fuel consumption, and lower emissions. GX engines establish themselves yet again as the best engines in the business.

• The GX340 is used in all sorts of applications. From Pressure Washers and Construction/Industrial equipment, to Tillers/Cultivators, Generators and Commercial Lawn & Garden Equipment, it can be found working hard all over Australia.
• A digital CDI ignition system with variable timing and an increased compression ratio combines with the GX340's Precision Camshaft design to offer precise valve timing and optimal valve overlap for better fuel efficiency.
• The GX340 offers precision-engineered components resulting in lower vibration, and a Ball Bearing-supported Crankshaft for greater stability. It also offers an improved piston design and a heavy duty balancer shaft to deliver smooth performance.
• The GX340, just like the entire GX Engine range, is covered by an extensive Honda 3 Year Warranty.

COMMON APPLICATIONS
The GX340 is used in all sorts of applications. From Pressure Washers and Construction/Industrial equipment, to Tillers/Cultivators, Generators andCommercial Lawn & Garden Equipment, it can be found working hard all over Australia.

Due to its power, heavy-duty Forestry Equipment, Agricultural Equipment and Water Pumps are also powered by the gutsy GX340.

Of course, to see how the GX340 stacks up against other Honda engines, click on the Compare Products icon next to the Share tab, in the top rightof this page.

FUEL EFFICIENT, HIGH OUTPUT OPERATION
A digital CDI ignition system with variable timing and an increased compression ratio combines with the GX340's Precision Camshaft design to offerprecise valve timing and optimal valve overlap for better fuel efficiency.

It draws on decades of Honda engineering with its OHV design, delivering increased efficiency and optimal power transfer where and when youneed it.

The use of lightweight, noise-reducing materials and a forged steel crankshaft & rigid crankcase results in an exceptionally quiet engine - animproved piston design reduces mechancal noise, with an overall reduction of engine noise by up to 5 dB.

SMOOTH PERFORMANCE
The GX340 offers precision-engineered components resulting in lower vibration, and a Ball Bearing-supported Crankshaft for greater stability.

It alsooffers an improved piston design and a heavy duty balancer shaft to deliver smooth performance.

A large capacity, multi-chamber exhaust system and sophisticated air intake system also makes for an exceptionally quiet engine.

And with a simple Throttle Control, large Fuel Tank and Automotive Type Fuel Cap, Dual Oil Drains and Fills, an easily accessible Spark Plug andHeavy Duty Recoil Starter, the GX340's features go on and on.

3 YEAR WARRANTY
The GX340, just like the entire GX Engine range, is covered by an extensive Honda 3 Year Warranty.

And for those who want a little bit more, available extras include Gear reduction options, Electric start option, Spark arrester and Charge & LampCoils with Multiple Output Options.

And should there be any issues, a nationwide network of 400+ authorised Honda dealers are there to back you up with all your parts & servicerequirements.

EXCEPTIONALLY QUIET
Helical cut gears

PROVEN RELIABILITY
Oil AlertCast iron cylinder sleeve
High quality materials, fit, and finish
Dual element air cleaner

EASY TO USE AND MAINTAIN
Easy, convenient, heavy duty control box

EASY STARTING
Automatic mechanical de-compression system
Variable ignition timing

EMISSIONS COMPLIANT
Applicable models meet the strictest world standards, contact Honda for more info
No catalyst necessary

SPECIFICATIONS
MODEL - GX340
TYPE - 4-stroke, overhead valve, single-cylinder, horizontal shaft
BORE & STROKE - 82 x 64 mm
DISPLACEMENT - 337cm3
COMPRESSION RATIO - 8.0:1
NET POWER - 7.1kW (9.5HP) at 3,600 rpm
CONTINUOUS RATED POWER - 5.8kW (7.8HP) at 3,600 rpm
MAXIMUM NET TORQUE - 22.1 Nm at 2,500 rpm
IGNITION SYSTEM - Transistorised magneto ignition
STARTING SYSTEM - Recoil (Electric Starter Optional)
COOLING SYSTEM - Forced-Air
PTO SHAFT ROTATION - Counter-clockwise (from P.T.O. side)
FUEL CONSUMPTION AT RATED POWER - 3.0 L/h at 3,600 rpm
RECOMMENDED FUEL - Unleaded
LUBRICATION SYSTEM - Splash
RECOMMENDED OIL - 10W/30 API SG
OIL CAPACITY - 1.1l
FUEL TANK CAPACITY - 6.1l
DIMENSIONS - 405 x 450 x 443mm
DRY WEIGHT - 30kg
OTHER OPTIONS - 2:1 Reduction
PRICE RANGE - $1085 - $1993
