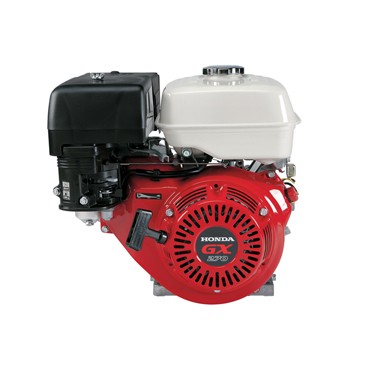

Honda GX270

Description

The GX270 was introduced in 2011, featuring new features, more power, quieter & better performance, lower fuel consumption, and lower emissions.

• The GX270 is used in all sorts of applications. From Pressure Washers and Construction/Industrial equipment, to Tillers/Cultivators, Generators and Commercial Lawn & Garden Equipment, it can be found working hard all over Australia.
• A digital CDI ignition system with variable timing and an increased compression ratio combines with the GX270's Precision Camshaft design to offer precise valve timing and optimal valve overlap for better fuel efficiency.
• The GX270's ball bearing-supported crankshaft, cast iron cylinder sleeve, Helical cut gears and precision engineered components result in greater stability and lower vibration for you, no matter what the application.
• The GX270, just like the entire GX Engine range, is covered by an extensive Honda 3 Year Warranty.

COMMON APPLICATIONS
The GX270 is used in all sorts of applications. From Pressure Washers and Construction/Industrial equipment, to Tillers/Cultivators, Generators andCommercial Lawn & Garden Equipment, it can be found working hard all over Australia.

Agricultural Equipment, Water Pumps, and even Go Karts, are powered by the GX270.

Of course, to accurately compare the GX270 with other Honda engines, click on the Compare Products icon next to the Share tab, in the top right ofthis page.

FUEL EFFICIENT, HIGH OUTPUT OPERATION
A digital CDI ignition system with variable timing and an increased compression ratio combines with the GX270's Precision Camshaft design to offerprecise valve timing and optimal valve overlap for better fuel efficiency.

It draws on decades of Honda engineering with its OHV design, delivering increased efficiency and optimal power transfer for where you need it.

And the use of lightweight, noise-reducing materials and a forged steel crankshaft & rigid crankcase results in an exceptionally quiet engine - animproved piston design reduces mechancal noise, with an overall reduction of engine noise by up to 5 dB.

THE WHOLE PACKAGE
The GX270's ball bearing-supported crankshaft, cast iron cylinder sleeve, Helical cut gears and precision engineered components result in greaterstability and lower vibration for you, no matter what the application.

With a simple Throttle Control, large Fuel Tank and Automotive Type Fuel Cap, Dual Oil Drains and Fills, an easily accessible Spark Plug andHeavy Duty Recoil Starter, the GX270's features go on and on.

And for those who want a little bit more, available extras include Gear reduction options, Electric start option, Spark arrester and Charge & LampCoils with Multiple Output Options.

3 YEAR WARRANTY
The GX270, just like the entire GX Engine range, is covered by an extensive Honda 3 Year Warranty.

That 3 years is relevant to both Domestic and Commercial applications, so you can rest assured with the knowledge that your GX270 is built to last.

And should there be any issues, a nationwide network of 450+ authorised Honda dealers are there to back you up with all your parts & servicerequirements.

SMOOTH PERFORMANCE
Precision engineered components result in lower vibration
Ball bearing supported crankshaft for greater stability
Heavy duty balancer shaft

EXCEPTIONALLY QUIET
Large capacity, multi-chamber exhaust system
Helical cut gears
Sophisticated air intake system

PROVEN RELIABILITY
Oil Alert
Cast iron cylinder sleeve
Dual element air cleaner

EASY TO USE AND MAINTAIN
Easy, convenient, heavy duty control box

EASY STARTING
Automatic mechanical de-compression system

EMISSIONS COMPLIANT
Applicable models meet the strictest world standards, contact Honda for more info
No catalyst necessary

SPECIFICATIONS

MODEL - GX270
TYPE - 4-stroke, overhead valve, single-cylinder, horizontal shaft
BORE & STROKE - 77 x 58mm
DISPLACEMENT - 270 cm3
COMPRESSION RATIO - 8.2:1
NET POWER - 6.0kW (8.0HP) at 3,600 rpm
CONTINUOUS RATED POWER - 5.1kW (6.8HP) at 3,600 rpm
MAXIMUM NET TORQUE - 17.7 Nm at 2,500 rpm
IGNITION SYSTEM - Transistorised magneto ignition
STARTING SYSTEM - Recoil (Electric Starter Optional)
COOLING SYSTEM - Forced-Air
PTO SHAFT ROTATION - Counter-clockwise (from P.T.O. side)
FUEL CONSUMPTION AT RATED POWER - 2.5 L/h at 3,600 rpm
RECOMMENDED FUEL - Unleaded
LUBRICATION SYSTEM - Splash
RECOMMENDED OIL - 10W/30 API SG
OIL CAPACITY - 1.1l
FUEL TANK CAPACITY - 5.3l
DIMENSIONS - 380 x 430 x 410mm
DRY WEIGHT - 25kg
OTHER OPTIONS - 2:1 Reduction - 2:1 Reduction with Clutch - 6:1 Reduction
PRICE RANGE - $1003 - $1946
