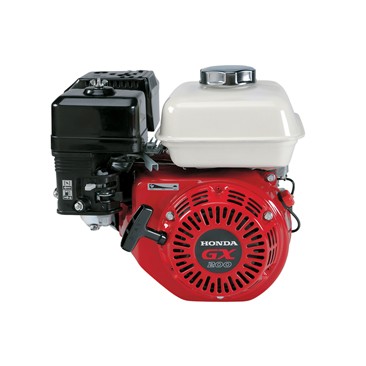

Honda GX200

Description

Professionals rely on the GX200 to deliver reliable, easy starting, fuel efficient performance, day in and day out.

• The GX200 is used in all sorts of applications. From Pressure Washers and Construction/Industrial equipment, to Tillers/Cultivators, Generators and Commercial Lawn & Garden Equipment, it can be found working hard all over Australia.
• The GX200's Precision Camshaft design offers precise valve timing and optimal valve overlap for better fuel efficiency.
• The GX200's ball bearing-supported crankshaft, cast iron cylinder sleeve, Helical cut gears and precision engineered components result in greater stability and lower vibration for you, no matter what the application.
• The GX200, just like the entire GX Engine range, is covered by an extensive Honda 3 Year Warranty.

COMMON APPLICATIONS
The GX200 is used in all sorts of applications. From Pressure Washers and Construction/Industrial equipment, to Tillers/Cultivators, Generators and Commercial Lawn & Garden Equipment, it can be found working hard all over Australia.

Agricultural Equipment, Water Pumps, and even Go Karts, are powered by the GX200.

Of course, to accurately compare the GX200 with other Honda engines, click on the Compare Products icon next to the Share tab, in the top right ofthis page.

FUEL EFFICIENT, HIGH OUTPUT OPERATION
The GX200's Precision Camshaft design offers precise valve timing and optimal valve overlap for better fuel efficiency.

It draws on decades of Honda engineering with its OHV design, delivering increased efficiency and optimal power transfer for where you need it.

And the GX200 incorporates a high compression ratio for better fuel efficiency than its competitors.

SMOOTH OPERATOR
The GX200's ball bearing-supported crankshaft, cast iron cylinder sleeve, Helical cut gears and precision engineered components result in greaterstability and lower vibration for you, no matter what the application.

The use of lightweight, noise-reducing materials and a forged steel crankshaft & rigid crankcase results in an exceptionally quiet engine thatincorporates a large capacity, multi-chamber exhaust system.

And with a simple Throttle Control, large Fuel Tank and Automotive Type Fuel Cap, Dual Oil Drains and Fills, an easily accessible Spark Plug andHeavy Duty Recoil Starter, the GX200's features go on and on.

3 YEAR WARRANTY
The GX200, just like the entire GX Engine range, is covered by an extensive Honda 3 Year Warranty.

That 3 years is relevant to both Domestic and Commercial applications, so you can rest assured with the knowledge that your GX200 is built to last.

And should there be any issues, a nationwide network of 450+ authorised Honda dealers are there to back you up with all your parts & servicerequirements.

EXCEPTIONALLY QUIET
Sophisticated air intake system

PROVEN RELIABILITY
High quality materials, fit, and finish
Dual element air cleaner

EASY TO USE AND MAINTAIN
Easy, convenient, heavy duty control box

EASY STARTING
Automatic mechanical de-compression system

EMISSIONS COMPLIANT
Applicable models meet the strictest world standards, contact Honda for more info
No catalyst necessary

AVAILABLE OPTIONS
Gear reduction options
Electric start
Spark arrester available
Charge and lamp coils with multiple output options available

SPECIFICATIONS
MODEL - GX200
TYPE4 - stroke, overhead valve, single-cylinder, horizontal shaft
BORE & STROKE - 68 x 54 mm
DISPLACEMENT - 196 cm3
COMPRESSION RATIO - 8.5:1
NET POWER - 4.1kW (5.5HP) at 3,600 rpm
CONTINUOUS RATED POWER - 3.7kW (5.0HP) at 3,600 rpm
MAXIMUM NET TORQUE - 12.4 Nm at 2,500 rpm
IGNITION SYSTEM - Transistorised magneto ignition
STARTING SYSTEM - Recoil (Electric Starter Optional)
COOLING SYSTEM - Forced-Air
PTO SHAFT ROTATION - Counter-clockwise (from P.T.O. side)
FUEL CONSUMPTION ATRATED POWER - 1.7 L/h at 3,600 rpm
RECOMMENDED FUEL - Unleaded
LUBRICATION SYSTEM - Splash
RECOMMENDED OIL - 10W/30 API SG
OIL CAPACITY - 0.6l
FUEL TANK CAPACITY - 3.1l
DIMENSIONS313 x 376 x 346mm
DRY WEIGHT16.2kg
OTHER OPTIONS2:1 Reduction - 2:1 Reduction with Clutch - 6:1 Reduction
PRICE RANGE - $660 - $1387
